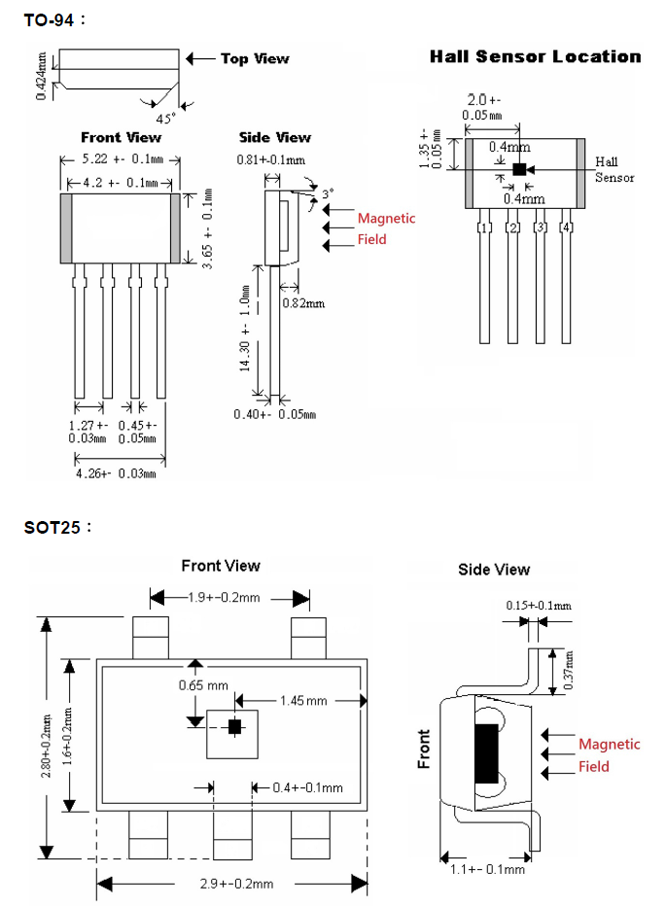

※ WINSON SMD TYPE(SOT-23, SOT-25) 홀 센서 양산시 주의사항

<다운로드>

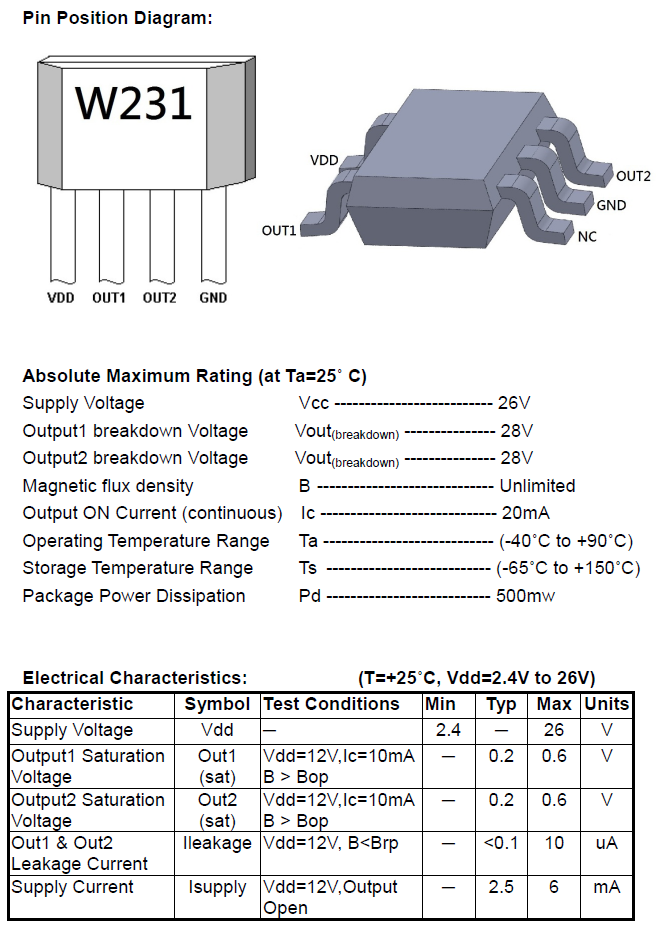

   ⊙ Operates from 2.4V to 26V supply voltage with reverse voltage protection
   ⊙ Operates with magnetic fields from DC to 15kHz
   ⊙ On-chip Hall Sensor and driver
   ⊙ On-chip temperature compensation circuitry minimizes shifts in On/Off points temperature and supply voltage temperature and supply voltage
   ⊙ Wide range operating temperature –40 ~ 90℃

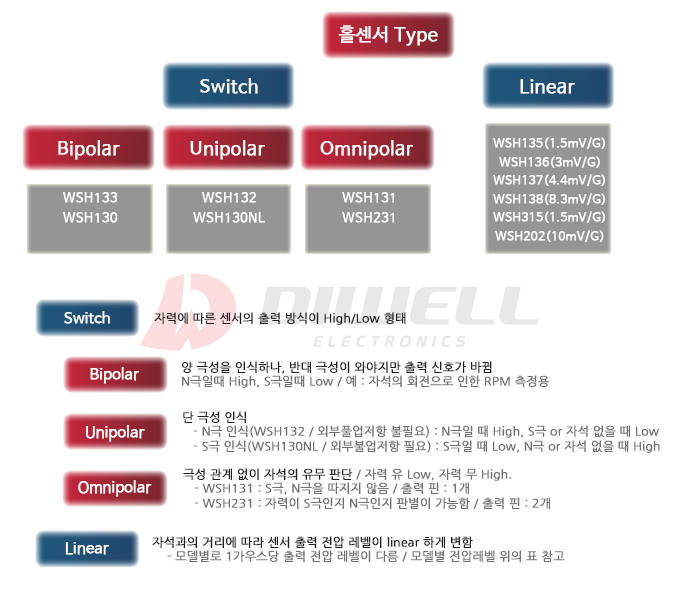

   ⊙ Output1: On (L) with magnetic South pole

      Output2: On (L) with magnetic North pole

      Both Off(H) without magnetic field

​​

​​

​​
